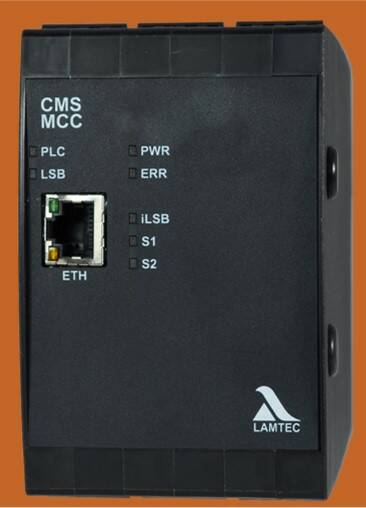

CMS-MCC (Master Control Component)
- Burner sequencer (FA1 Function)
- 12 Digital Inputs, 9 digital Outputs, freely configurable
- Input for flame scanner FFS07/08 (option)
- Input for ionisation (option)
- Firing rate input 4 - 20 mA / TPS or potentiometer,
Output 4 - 20 mA internal firing rate - Codesys Soft-PLC with access to internal variables for
non-failsafe extensions - Modbus TCP interface on-board (Ethernet)
- Versions available:
- Input 115/230 VAC Output 115/230 VAC
- Input 24 VDC Output 115/230 VAC
- Input 24 VDC Output 24 VDC

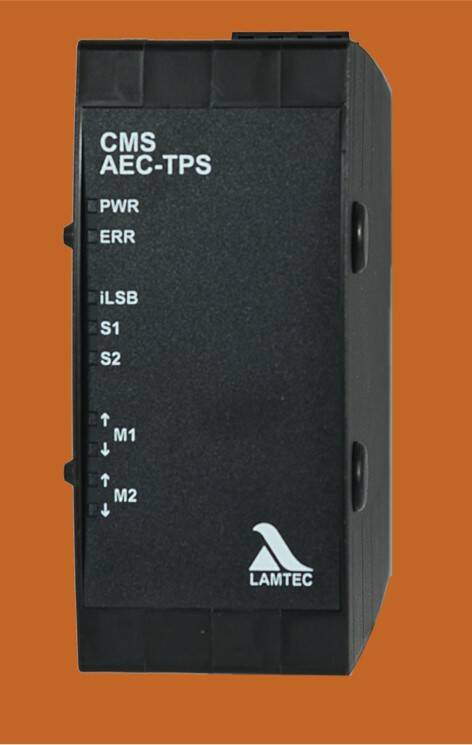

AES-TPS (Actuator Extension Component- Tree Point Step)
- Compatible with ETAMATIC / FMS servomotors
- 1 Module supports 2 TPS servomotors
- Current output supports up to 0,5 A for each motor
- Up to 5 AEC-TPS modules per system
- Up to 10 servomotors per CMS system possible
AEC-VS (Actuator Extension Component- Vatiable Speed)
- Module for frequency inverter of the combustion air fan or recirculation fan
- Module for 4 - 20 mA motors, pneumatic actuators etc.
- Up to10 AEC-VS per CMS system possible
- VSD module with feedback input for Namur sensor,
3-wire sensor and 4 - 20 mA output for ‘Fan ON‘,
digital input for frequency inverter fault/status signal
SDI (Safe Digital Input)
- 8 Inputs per module
- All inputs are freely configurable
- Available in alternative versions for 115/230 V and 24 VDC
- Up to 6 digital input modules
- Up to 60 digital inputs per CMS system possible
SDO (Safe Digital Output)
- 8 Outputs per module
- All outputs are freely configurable
- Available in alternative versions for 115/230 VAC and 24 VDC
- Up to 4 digital output modules
- Up to 41 digital outputs per CMS system possible
SAI ( Safe Analogue Input)
- ›3 Failsafe analogue inputs or 6 non-failsafe analogue inputs
or any combination of it - ›All inputs are freely configurable to the functions
- ›Inputs: 4 … 20 mA, 0 … 10 V impulse or digital
- ›Up to 3 SAI per system
- ›Up to 9 failsafe or 18 non-failsafe inputs
per CMS system possible
